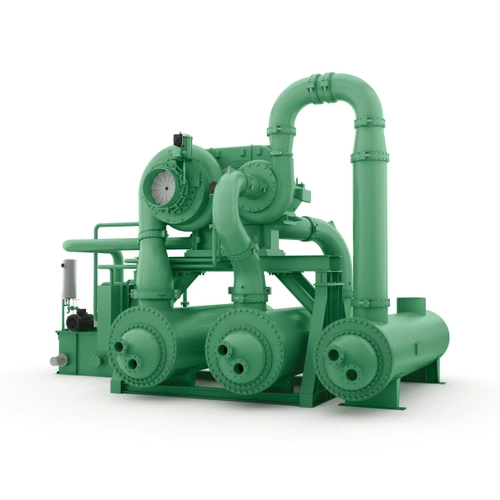

MSG® NX 30000 Centrifugal Air & Gas Compressor
Designed with air separation and industrial gas applications in mind, Ingersoll Rand’s MSG® NX 30000 centrifugal compressor provides industry leading efficiency and lower overall total cost of ownership in a optimized, easy-to-maintain package. Built on a common base with robust components, MSG NX compressors undergo a vigorous testing and validation process to ensure superior performance even under extreme conditions. Available in many configurations, the MSG NX 30000 can be tailored to meet your precise needs.
Share
Features
Product Highlights
From installation throughout the entire lifecycle of the compressor, Ingersoll Rand’s MSG® NX 30000 centrifugal compressor is designed to meet your needs for clean, dry air with industry-leading features, including:
- Highly efficient aerodynamic components combined with low mechanical losses and power conserving inlet throttle control (IGV) provide industry-leading efficiency and lower total cost of ownership
- Optimized package design built on a common base to shorten project implementation time, reduce installation complexity, and simplify compressor maintenance during the lifecycle.
- Robust gearbox with high-efficiency AGMA 13 gearing, five-axis milled impeller, non-contacting gas and oil seals, and stainless steel rotation elements stands up provides superior reliability, even under extreme operating conditions.
- Split pinion bearing and seal design allows for easy onsite inspection.
- Ergonomic lubrication console designed for serviceability with standard sample valve, duplex oil filter assembly, and reservoir drain valve. Can be designed to custom specifications.
- Extended-surface, plate-fin design heat exchangers ensure efficient heat transfer, even in spaces with limited clearance.
- Advanced Maestro Control Panel delivers precise, automatic pressure and flow regulation through energy-saving control modes.
- Supported by Ingersoll Rand’s global team of expert field service technicians to ensure superior compressor operation, from installation, to commissioning, and throughout the lifecycle of the compressor.
MAESTRO CONTROL PANEL
The advanced Maestro® Control Panel with intuitive 10" high-resolution color display makes critical compressor information easy to find and enables precise, automatic pressure and flow regulation. Complete with energy-saving control modes, the controller provides the information needed to make informed decisions whether you’re at the compressor or across the world.
INLET THROTTLE GUIDE VANE
State-of-the-art inlet guide vane assembly provides best-in-class turndown range coupled with low pressure drop to optimize overall system efficiency at multiple operating points.
ROBUST ROTATING COMPONENTRY
Robust gear box design maximizes reliability. Features include AGMA 13 quality gearing, tapered rider ring thrust collars, and a Hirth attachment for impellers to pinion shafts. A standard gearbox inspection portal simplifies routine checks and ensures easy maintenance.
HEAT EXCHANGERS
Ultra efficient extended-surface, plate-fin design optimizes heat transfer and reduces footprint. Water-in-tube cooler reduces maintenance and ensures easy cleaning.
Low Total Cost of Ownership
Over time, the energy required to power a compressed air system is the largest cost associated with a compressor; particularly in today’s fluctuating energy markets. That is why, to accurately determine the return on your investment, it is important to consider the total life-cycle cost of operating the compressor, including the initial investment, energy consumption and maintenance costs.
The power savings delivered can significantly speed up the payback on your initial investment, and the savings continue to build the more you use the MSG NX 30000.
COMPARISON MSG NX 30000 VS OTHER COMPRESSORS
Model Specifications
Documents
Parts and Accessories
Air Compressor Installation
Our Project Managers are professionals that deliver clear and simple processes to ensure you are in control of the project objectives without the headache of managing every little detail.
Learn More
